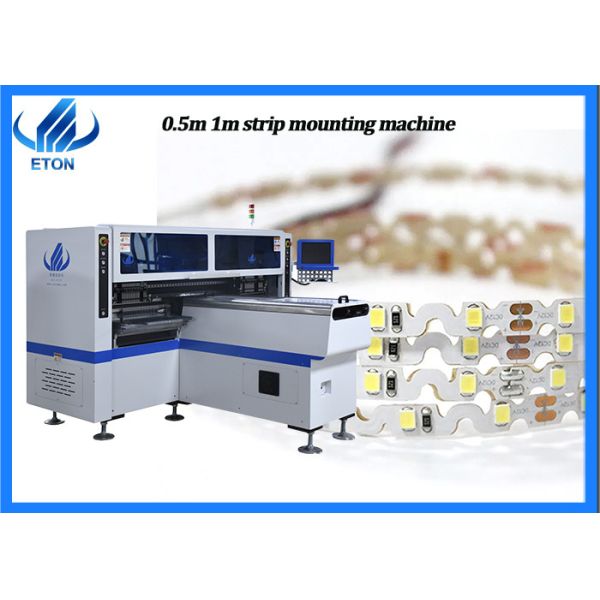

0.5m 1m Strip light 3528 5050 Chip mounting machine
Machine information
F7S machine can mounting 0.5m,1m strip light,and the optimum speed can reach 180000CPH
Dual-arm professional highspeed mounter,2-4 type of materials at the same time, can mounting RGB 34 nozzles group to take and group to mount.
Components:LED 3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers etc.
Camera:5sets Digital camera Vision alignment+Mark correction can recognition RGB and improve the mounting speed and stability.
Technical parameter
| Model | HT-F7S |
| Dimension |
| Length | 2700mm |
| Width | 2300mm |
| Height | 1550mm |
| Total Weight | 1700kg |
| PCB |
| PCB Length Width | Max:1200*330mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group picking and separately placing |
| O.S. |
| System | Windows7 |
| Software | R&D independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, Mouse |
| Vision System |
| No. of Camera | 5 sets ( Digital camera) |
| Vision alignment, MARK correction |
| Repeat Mounting Precision | ±0.02mm(Repeat precision) |
| Mounting Height | ≦5mm |
| Mounting Speed | 150000~180000 CPH |
| Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Space | 0.5mm |
| Power | 380AC 50 HZ |
| Power Consumption | 6kw |
| Operating Environment | 23℃±3℃ |
| Conveyor Transmission | Max Length :1200 mm |
| Transmission Speed | >500mm/sec |
| Transmission Direction | Single(left→ right or right→ left) |
| Transmission Mode | Online drive |
| Positioning way | Optical |
| Air supply | 0.4-0.6mpa (4-6kgf/cm²) 150N/min |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor+ Servo motor |
| Feeding System |
| No. of Feeders Station | 68 PCS |
| No. of head | 34 PCS |
| Feeding way | Electric feeder with double motor |

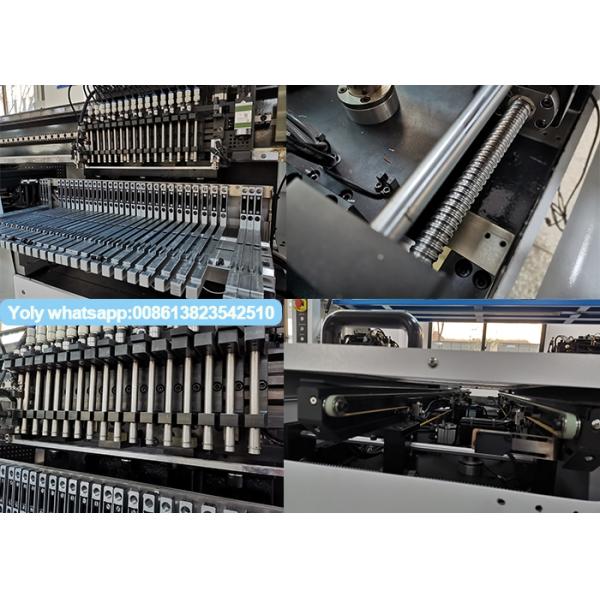

Machine part
